Equipped with a drum mixer, it can work continuously with high efficiency.
Diesel-powered, it provides strong and reliable performance.
Crawler and wheel support flexible site transition for various terrains,
it allows for easy transition between sites and flexible concrete material placement.
Faster mixing speed and spacious pumping reach. An excellent assistant for vertical pumping,
with a reach of 26m to 38m.
<
>
Concrete mixer pump is a kind of equipment integrating concrete mixing and pumping functions, which can efficiently complete the mixing and conveying work of concrete, they are featured with save time, labor, and operational costs, very suitable for the various kinds of construction needs of construction sites.
Types of Concrete Mixer Pumps
Aimix has three main types of Aimix concrete mixer pumps for sale. Each type of concrete mixer with pump for sale has its own hot sale models. With different structure and advantages, you can choose concrete mix and pump based on your project’s requirement.

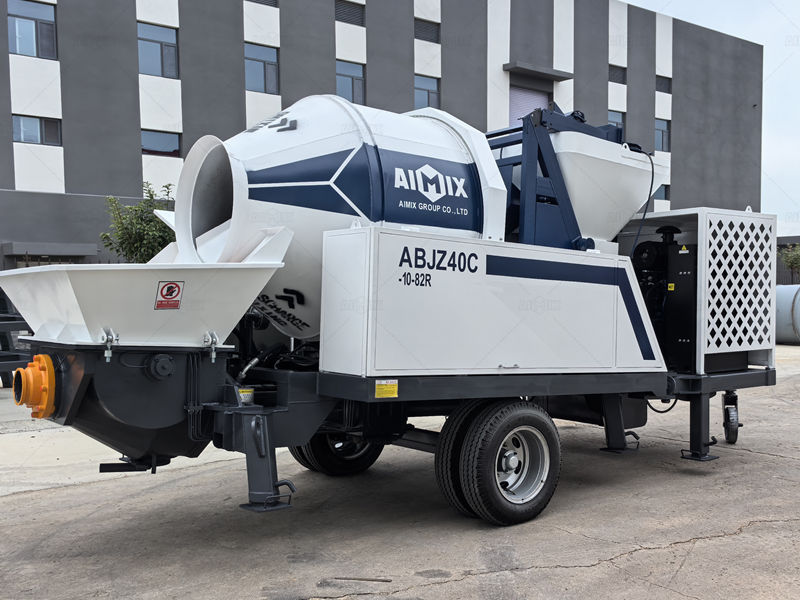

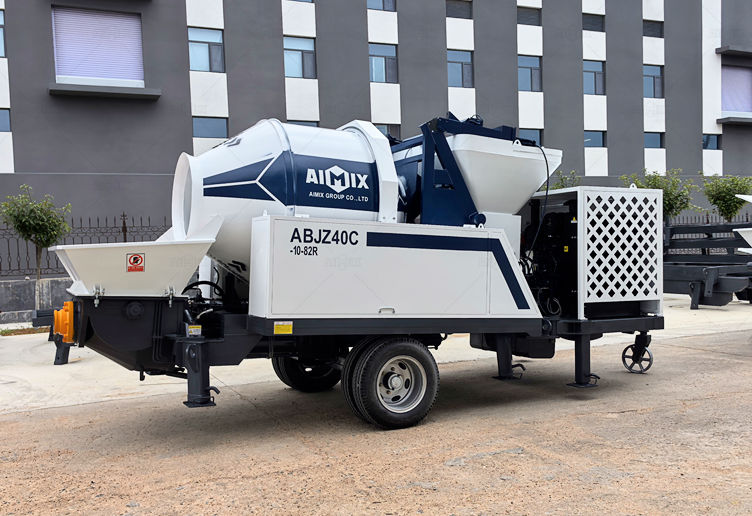

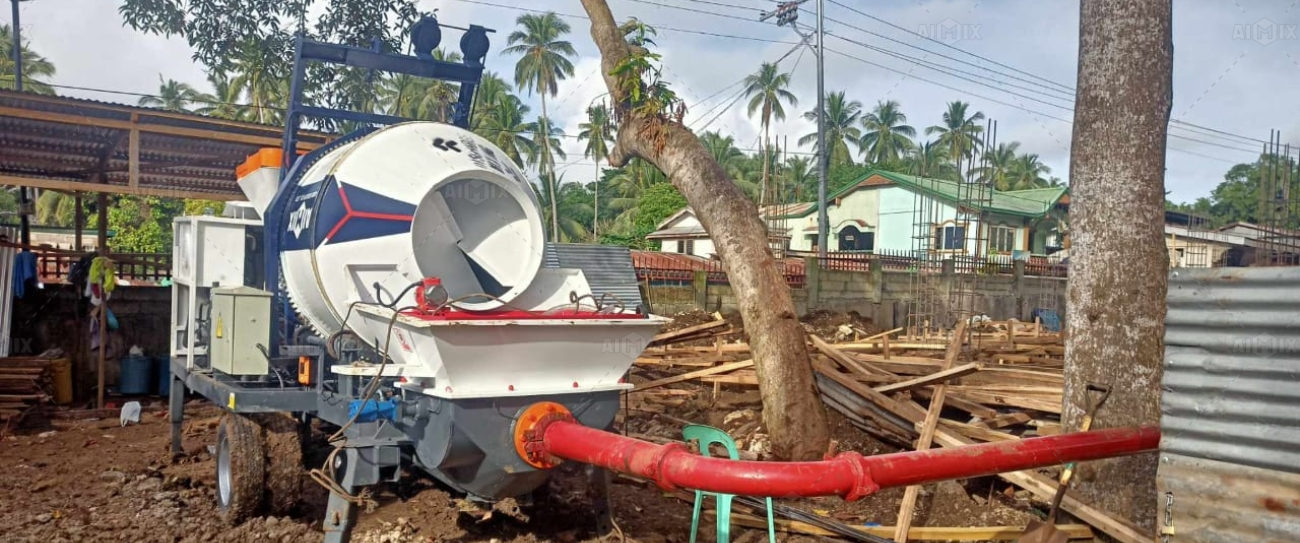

Concrete Mixer Pump with Drum Mixer
A diesel concrete pump with mixer machine is highly versatile and powerful, perfect for remote construction sites without access to electricity. Here shows the ABJZ40C model’s parameters.
- Max. theo. concrete output:40m3/h
- Max. theo. Vertical Conveying Distance: 150m
- Max. theo. Horizontal Conveying Distance: 600m
- Max. Aggregate Diameter (Slick/scree): 40mm
Get A Quote
Efficient

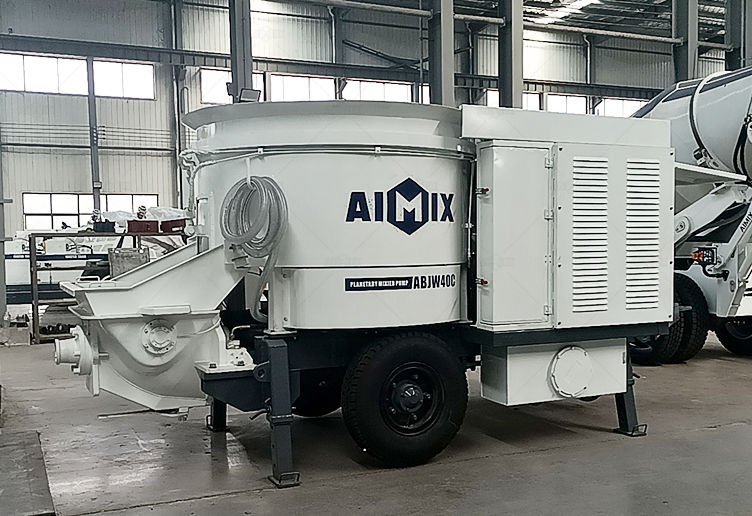

Concrete Mixer Pump with Vertical Shaft
This concrete mixer pump for sale with vertical shaft is equipped with double shaft which has dual hydraulic drive and increase the mixing speed by 2.3 times.
Get A Quote
Fast

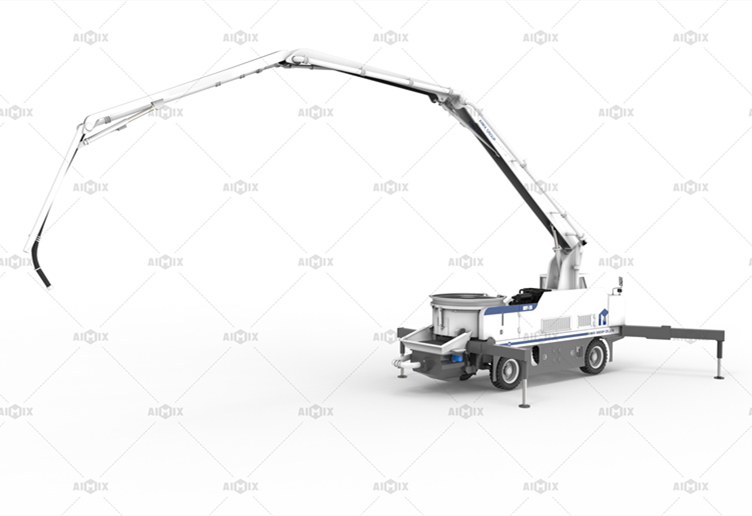

Wheel Type
Our new type concrete mixer boom pump with vertical shaft mixer can pump the concrete mixture far away with the help of the long boom. There are three types of vertical shaft
mixer : wheel-type, crawler-type and truck-type(cement mixer pump truck).
- Max Concrete Output: 89m³/h
- Boom Length: 20m, 26m, 30m, 33m
- Hot Model: ABY20, ABY26
- Advantages: Designed with an engineering chassis structure，the wheeled boom concrete pump and mixer can realize “immediate operation upon arrival and quick relocation upon completion,” and the transfer efficiency is increased by 60%.
Get A Quote
Flexible

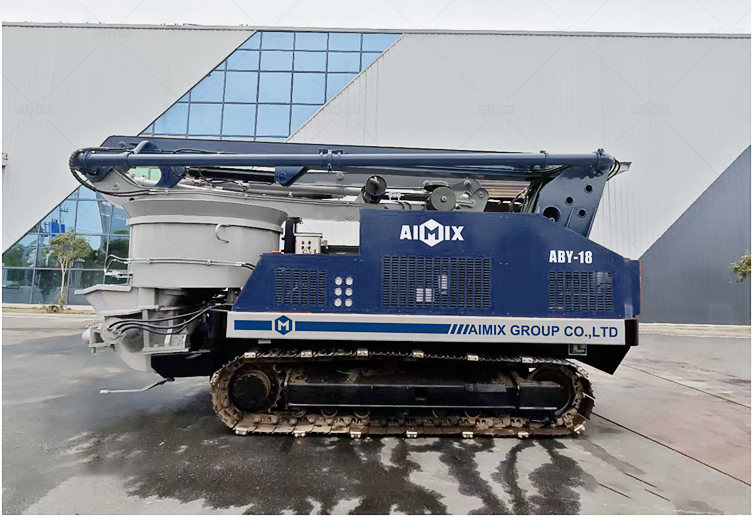

Crawler Type
The crawler type concrete vertical shaft mixer with boom is equipped with a crawler chassis and features remote control capability. The crawler is a robust structure to help the pump move.
- Max Concrete Output: 50m³/h
- Boom Length: 8m, 15m, 18m, 20m, 25m
- Hot Model: ABY18
- Advantages: Equipped with an all-terrain tracked chassis and an adaptive hydraulic suspension system， it provides a climbing capability of 35°. Besides, with a function of 360° zero-radius turning, it enables “zero-preparation construction” in extreme conditions such as mud, desert, and mountainous terrain, improving passability by 60%.
Get A Quote
Flexible

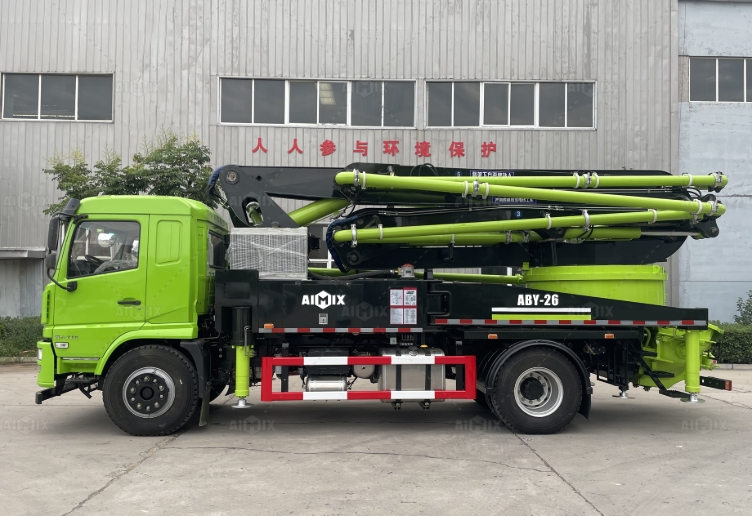

Truck Type
The truck type concrete vertical shaft mixer with boom has lightweight design, short wheelbase, compact body, regulatory compliance. Its operating area is spacious. It provides high construction efficiency with strong vertical pumping ability from 26 meters to 38 meters.
- Max Concrete Output: 120m³/h
- Boom Length: 26m, 30m, 33m, 38m
- Hot Model: ABY33
- Advantages:
- Equipped with a fully hydraulic vertical shaft planetary type mixing system for highly efficient mixing without 360° dead zone, it achieves over 30% improvement in concrete uniformity and density.
- Dual Breakthrough in Space Adaptability and Operational Coverage: Modular compact design combined with a 33-meter boom, it easily handles narrow job sites and complex underground projects.
- Multi-Functional Machine for Doubled Construction Efficiency: The boom concrete pump and concrete mixer work in perfect harmony, covering the entire process of mixing, pumping, and distributing. This collaboration reduces equipment scheduling costs and expands the operational radius by 50%.
Get A Quote
Flexible
Concrete Mixer Pump Specification
Here shows you the specifications of diesel and electric power concrete mixer pump. Learning more about equipment specification can help you choose the suitable one for your project.
| Items | Units | ABJZ30C | ABJZ40C |
| Max. theo. concrete output(L./H) | M3/h | 30 | 40 |
| Mixer rated feed capacity | m3 | 0.56 | 0.56 |
| Mixer rated discharge capacity | m3 | 0.35 | 0.45 |
| Max.concrete pumping pressure(H./L.) | MPa | 10 | 10 |
| Distribution valve type | | S Valve | S Valve |
| Concrete cylinder diameter×stroke | mm | Φ140×1000 | Φ180×1000 |
| Hopper capacity | L | 400 | 400 |
| Outlet diameter | mm | Φ150 | Φ150 |
| Diesel engine model | | Weichai | Weichai |
| Electrical engineering power | KW | 37 | 82 |
| Rotate speed | r/min | 1480 | 2200 |
| Circuit type | | Open circuit | Open circuit |
| Pumping system pressure | MPa | 26 | 32 |
| Mixing system pressure | MPa | 6-8 | 6 |
| Capacity of oil tank | L | 260 | 350 |
| Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/300 | 120/500 |
| Max. aggregate diameter | mm | Slick/scree:10/20 | Slick/scree:40/50 |
| Inside diameter of delivering pipe | mm | Φ100 | Φ125 |
| Dimensions:length×width×height | mm | 4500x1750x1600 | 600x2300x3150 |
| Total weight | kg | 3000 | 4500 |

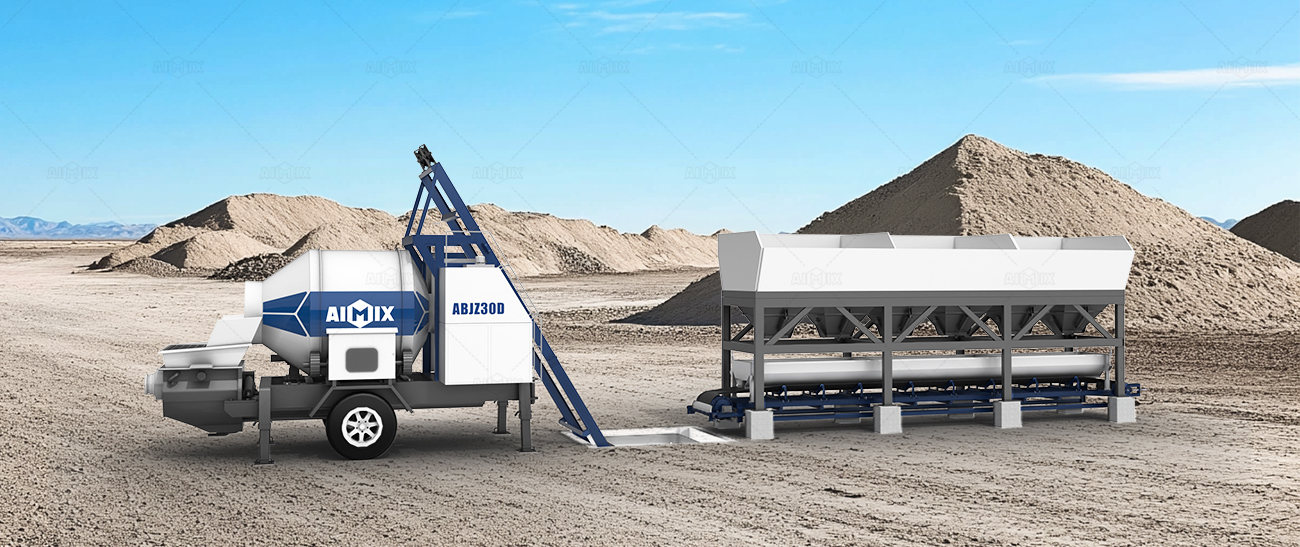

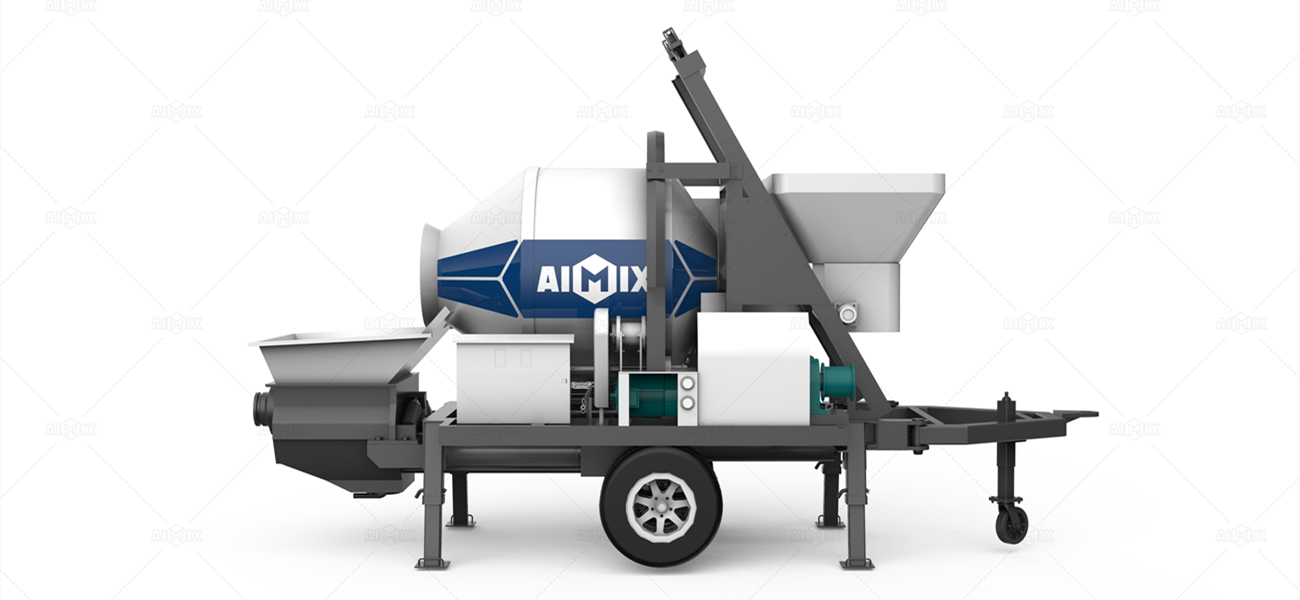

| Items | Units | ABJZ30D | ABJZ40D |
| Max. theo. concrete output(L./H) | M3/h | 30 | 40 |
| Mixer rated feed capacity | m3 | 0.56 | 0.56 |
| Mixer rated discharge capacity | m3 | 0.35 | 0.45 |
| Max.concrete pumping pressure(H./L.) | MPa | 10 | 10 |
| Distribution valve type | | S Valve | S Valve |
| Concrete cylinder diameter×stroke | mm | Φ140×1000 | Φ180×1000 |
| Hopper capacity | L | 400 | 400 |
| Outlet diameter | mm | Φ150 | Φ150 |
| Winding motor power | KW | 5.5 | 5.5 |
| Stir the motorPower | KW | 4.5 | 4.5 |
| Water pump motor powe | KW | 0.55 | 0.55 |
| Electrical engineering power | KW | 37 | 45 |
| Rotate speed | r/min | 1480 | 1480 |
| Circuit type | | Open circuit | Open circuit |
| Pumping system pressure | MPa | 26 | 26 |
| Mixing system pressure | MPa | 6-8 | 6-8 |
| Capacity of oil tank | L | 260 | 370 |
| Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/300 | 120/500 |
| Max. aggregate diameter | mm | Slick/scree:10/20 | Slick/scree:40/50 |
| Inside diameter of delivering pipe | mm | Φ100 | Φ125 |
| Dimensions：length×width×height | mm | 4500x1750x1600 | 4200x2300x3150 |
| Total weight | kg | 3000 | 4500 |
