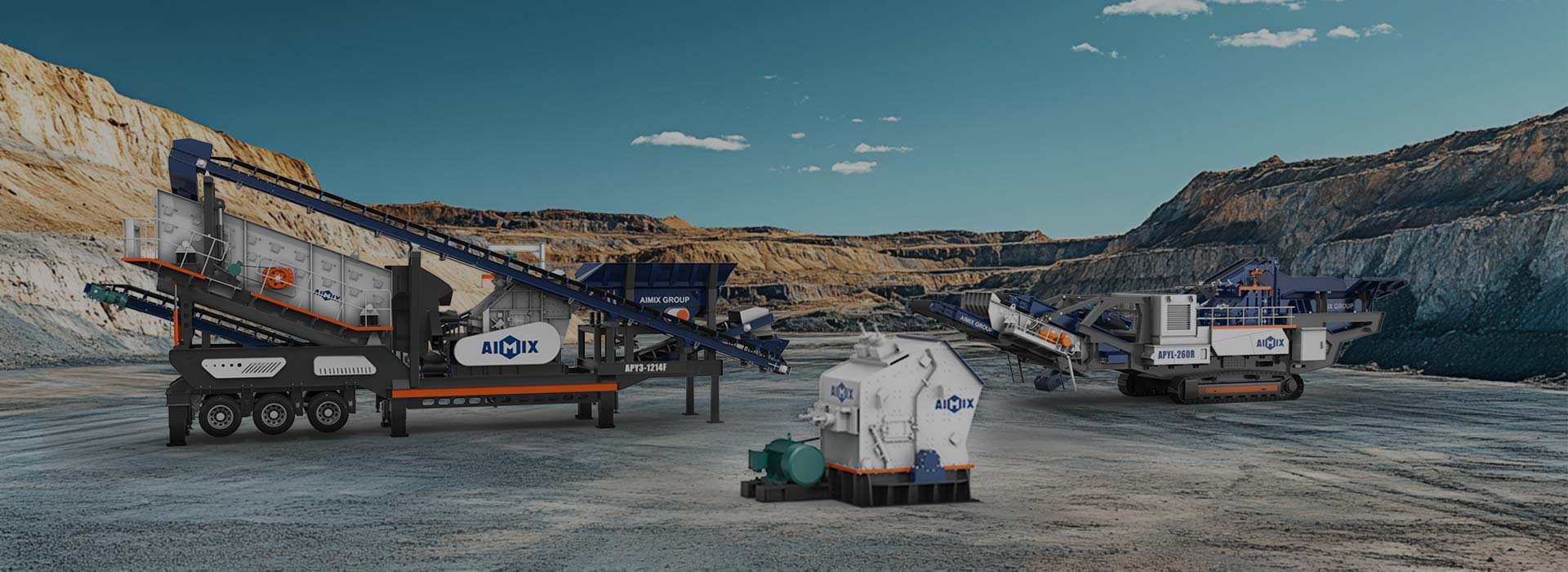

impact crusher machine in AIMIX
APF-V Series Impact Crusher Machine - Three-chamber

Impact Crusher For Sale

Impact crusher for sale is a powerful crushing machine that uses high-speed impact forces to crush kinds of coarse, medium and fine materials (granite, limestone, concrete, etc.). The finial products it processed with a consistent product shape, making it ideal for applications such as recycling, quarrying, and road construction.

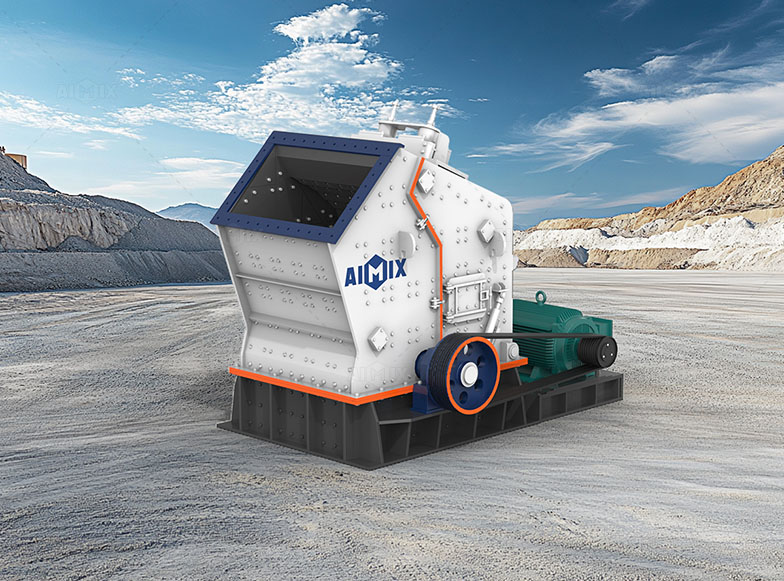

impact crusher from AIMIX Group
  • 【Feeding Size】: ≤500mm
  • 【Cone Crusher Output Size】: 5 -200 mm
  • 【Capacity】: 40 – 400T/h
  • 【Applicable materials】: Limestone, granite, construction wastes, marble, basalt, iron ore, river pebbles, shale, bluestone, coal, pebbles.
  • 【Applicable Fields】: Widely used in various ore crushing, railways, highways, energy, cement, chemical, construction, and other industries.

As a versatile and efficient tool in material processing, it can be used as primary impact crusher or secondary impact crusher. And AIMIX Group’s series of counterattack breakers, categorized into two impact crusher types: two-chamber and three-chamber models, likely offers distinct features and advantages tailored to different crushing needs.

Different Types of Impact Crushers

APF Series Impact Crusher – Two-chamber

The APF Series impact crusher features a two-cavity design, optimizing it for handling materials with medium hardness and lesser abrasive qualities, such as limestone and concrete.

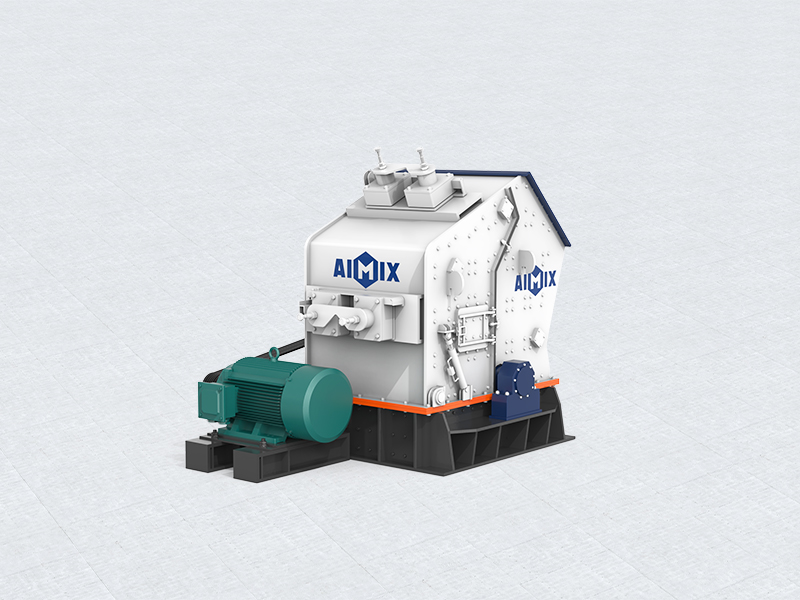

APF Series Impact Crusher - Two-chamber

Get Price Now
  • Processing Materials: Designed for medium-hard, low-abrasion materials like limestone and concrete.
  • Output Quality: Delivers cubic-shaped particles suitable for construction aggregates.
  • Structural Advantages: The two-cavity design reduces material friction, extending the machine’s lifespan.
  • Maintenance Ease: Simple design allows for easy maintenance, reducing downtime—ideal for operations prioritizing stability.

ModelRotor diameter × length (mm)Feed opening size (mm)Feed particle size (Max,mm)Production capacity (t)Power (kW)Weight (t)Dimensions L×W×H (mm)
APF1210Φ1200×1000450×1060350100-16090-110172550×1940×2110
APF1214Φ1200×1400450×1440400130-200132-160222550×2340×2110
APF1315Φ1300×1500550×1530450180-320160-200292720×2460×2410
APF1320Φ1300×2000610×1900500230-400200-250382720×3060×2410
APF1415Φ1400×1500800×1530600280-450250-315403120×2650×2660
APF1520Φ1500×2000830×2040700320-550315-400453959×3564×3330

APF-V Series Impact Crusher Machine – Three-chamber

The APF-V Series impact crusher is designed with a three-chamber structure, enabling a more complex crushing process suitable for tougher, more abrasive materials like basalt, granite, and high-strength concrete.

APF-V Series Impact Crusher Machine - Three-chamber

Get Price Now
  • Material Suitability: Suitable for harder, more abrasive materials like basalt, granite, and high-strength concrete.
  • Output Quality: The three-chamber design enhances particle shape and increases crushing efficiency.
  • Advanced Structures: Even wear across components, prolonging service life and improving productivity.
  • Product Control: Enables precise control over product size, accommodating a broader range of material characteristics.

ModelRotor diameter × length (mm)Feed opening size (mm)Feed particle size (Max,mm)Production capacity (t)Power (kW)Weight (t)Dimensions L×W×H (mm)
APF1007VΦ1000×700400×73020020-5045-559.52400×1550×2660
APF1010VΦ1000×1050400×108020035-8055-7512.22400×2250×2620
APF1210VΦ1250×1050570×103025070-12090-110152690×2338×2890
APF1214VΦ1250×1400570×143025090-180132-16018.52690×2688×2890
APF1315VΦ1320×1500625×1530350150-250160-20019.53096×3273×2667
APF1320VΦ1320×2000625×2030350160-350200-280283096×3560×3185
APF1415VΦ1400×1500800×1530400280-350250-315333220×3473×2960
APF1520VΦ1500×20001315×2040500300-500315-400433890×3564×3220

Having introduced the unique features and configurations of the two-cavity and the three-chamber impact crusher machines, let’s now explore their practical applications in various crushing solutions. By examining the cases, we can better understand the horizontal shaft impact crusher’s versatility and efficiency across different material types and project requirements.

Impact Crusher Usages in Crushing Solutions

The impact crushers for sale have been widely used in different fields, such as the crushing of ores, construction materials, and recycled resources. Based on the specific requirements and site conditions, we will offer customized crushing solutions.

Crushing Limestone Materials for Aggregate Production

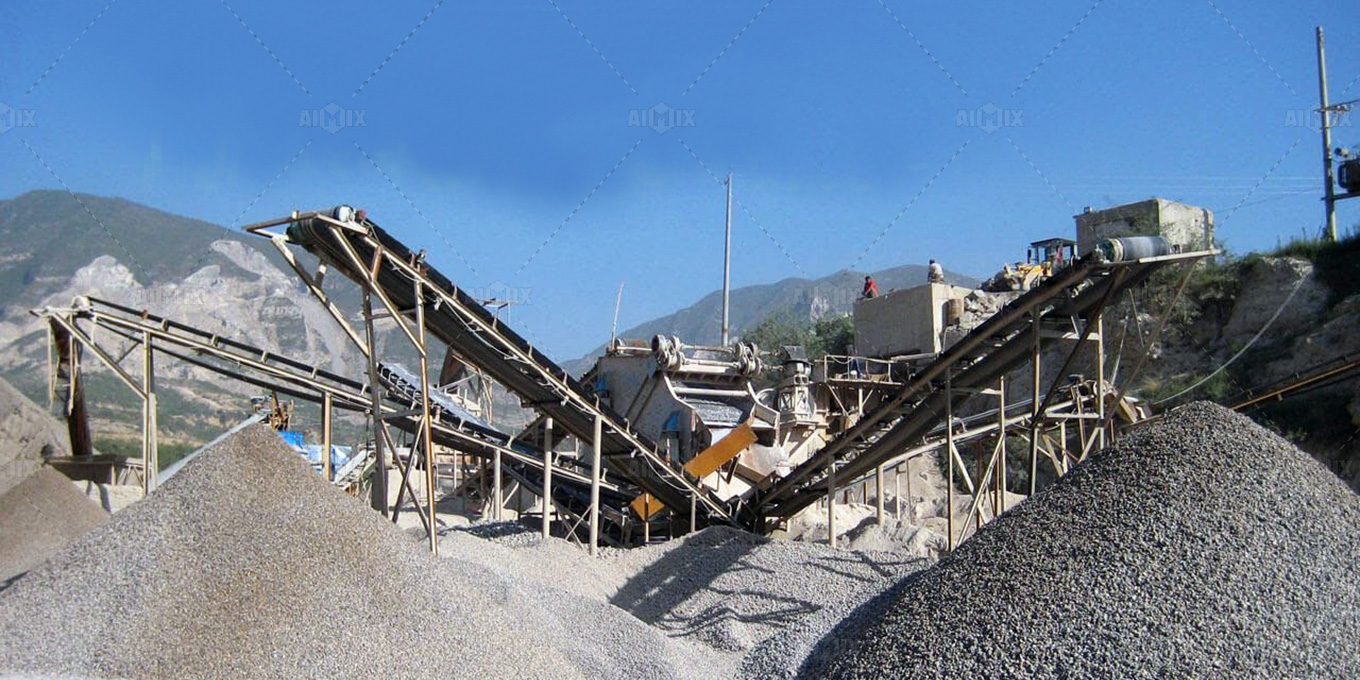

Impact Crushing Equipment Crushing Limestone Materials for Aggregate Production

  • Capacity: 150 tph
  • Main crusher: Jaw Crusher and APF Series horizontal shaft impactor
  • Output Aggregate Size: 20-40 mm
  • Application Field: Aggregate production for concrete and road construction projects
  • Details: The vertical shaft impact crusher machine efficiently produced uniform, cubical-shaped aggregates, ideal for concrete mixes and road base layers. With limestone being less abrasive, it can minimized wear, providing consistent output and reducing operational costs for the client.

Fine Crushing Basalt Materials for High-Strength Concrete

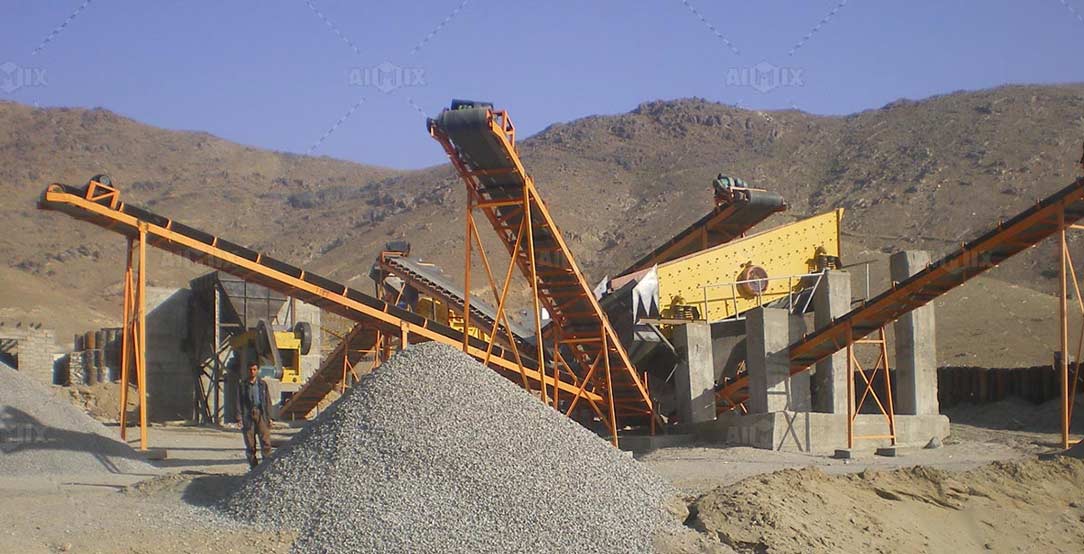

Basalt Crushing Plant working in Afghanistan

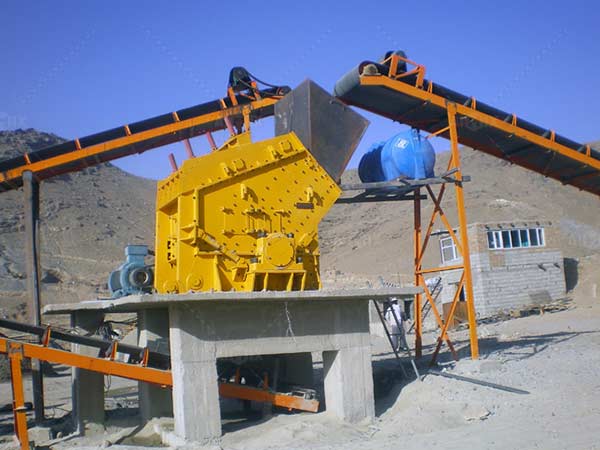

Impact Crushing Machine used for Basalt Crushing

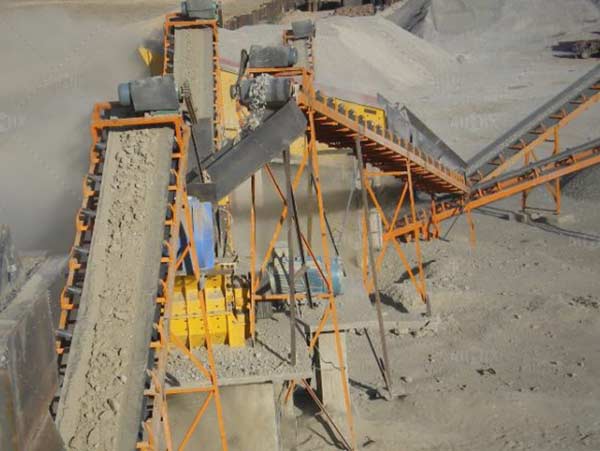

Impact Crushing Equipment in the Basalt Crushing Plant

  • Capacity: 80 tph
  • Finished Product: 5-10, 20-25 mm
  • Crushers: Jaw Crusher and APF-V impact crusher
  • Applications: High-strength concrete production
  • Details: The Afghanistan client wants to process basalt in his quarry into finer, uniform aggregates perfect for high-strength concrete applications. Based on his needs, the APF-V Series three-chamber horizontal impact crusher was chosen for its robust three-chamber structure, ensuring superior reduction of the rock’s hard particles.

Mobile Impact Crusher Recycling Construction Waste into Reusable Aggregate

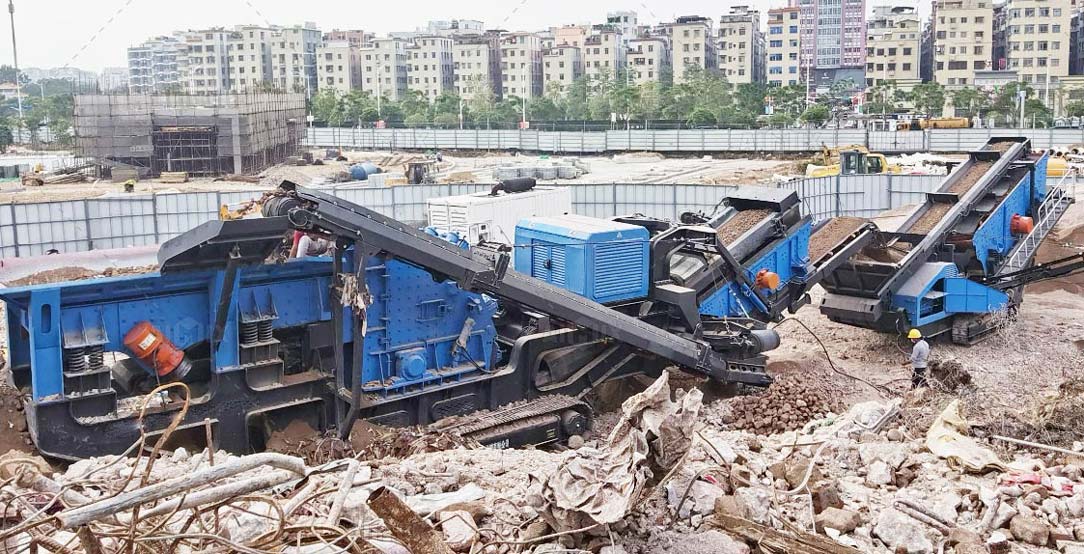

impact crusher for construction waste processing

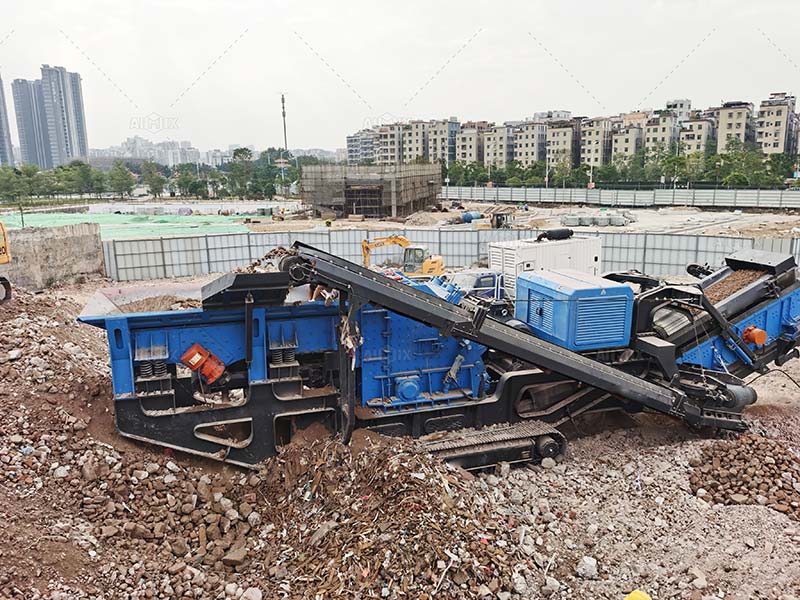

Crawler Impact Crusher Processing Construction Waste on-site

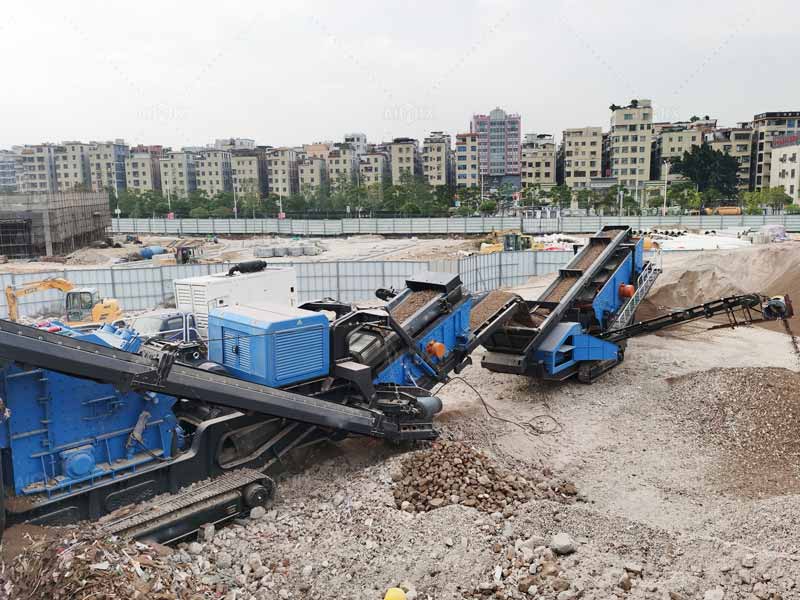

Mobile Impact Crusher Machine for Recycling Construction Waste

  • Capacity: 100 tph
  • Raw Materials: Mixed construction debris (concrete, bricks)
  • Finished Product: 0-30 mm
  • Crushers: Jaw Crusher and APF-V impact crusher
  • Application Field: Recycled concrete aggregate for sub-base layers and filler materials.

Get A Quote

Through these cases, it’s evident that AIMIX impact crushers adapt well to different materials and project demands, enhancing productivity and delivering aggregates that meet specific construction needs. From the last eco-friendly recycling applications, the mobile impact crusher becomes an invaluable solution when flexibility and mobility are crucial—especially on frequent-changed job sites or remote locations.

Next, Let’s explore the unique advantages of the AIMIX mobile impact crusher plant and how it enhances on-site efficiency in diverse project environments.

Mobile Impact Crusher – Ultimate Choice for Concrete Construction Waste Crushing

Wheeled Mobile Impact Crusher – 3 in 1

The AIMIX APY3 mobile impact crusher machine in its wheeled configuration offers exceptional mobility, enabling it to be easily transported and quickly set up on various job sites. The wheeled mobile impact crusher for sale is designed for versatility, making it an ideal solution for projects, especially for construction waste demolition and on-site material recycling.

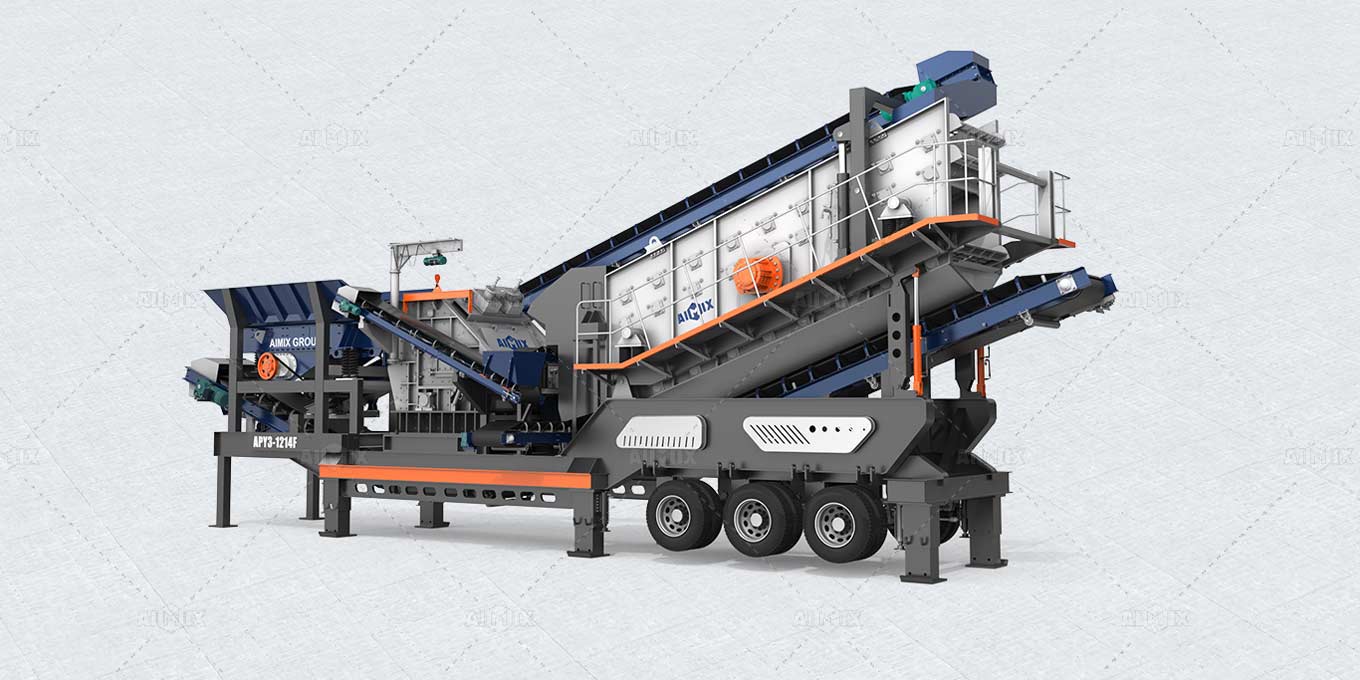

Wheeled Impact Crusher

Feeding Size: ≤300mm
Capacity: 50-400T/H
Chassia Type: Wheeled
Finial Size: 0-5/5-10/10-20/20-40mm
Get A Quote

3 in 1 Mobile Impact Crusher Plant
ModelAPY3-1110F-S3APY3-1210F-S3APY3-1213F-S3APY3-1315F-S3
Capacity（t/h）50-11070-12080-150130-260
Vibrating Feeder
ModelAPG-0930ZAPG-0930ZAPG-9538ZAPG-1145Z
Impact Stone Crusher
ModelAPF-1110HAPF-1210HAPF-1213HAPF-1315H
Power（kw）132132200250
Discharge size (mm)>30>30>30>30
Vibrating Screen
ModelAPS-1548Y3APS-1548Y3APS-1860Y3APS-2160Y3
Power（kw）2*5.52*5.52*7.52*11
Belt Conveyor
Vehicle mounted belt conveyorYesYesYesYes

Track Impact Crusher – Under 500 tph

The tracked impact crusher is engineered to deliver powerful, flexible, and efficient crushing performance in challenging terrains and heavy-duty applications. Mounted on robust crawler tracks, the track mounted impact crusher is ideal for tough environments, including uneven job sites, remote locations, and projects requiring strong traction and mobility.

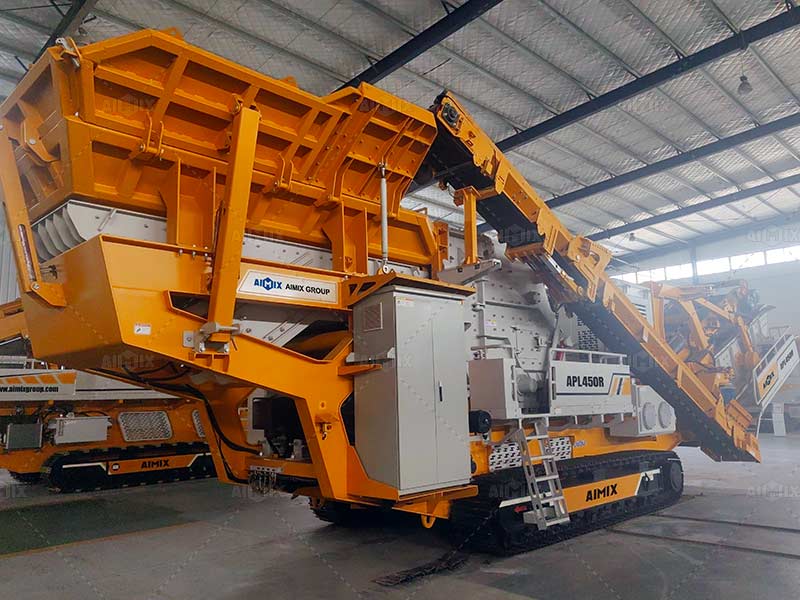

tracked impact crusher for sale

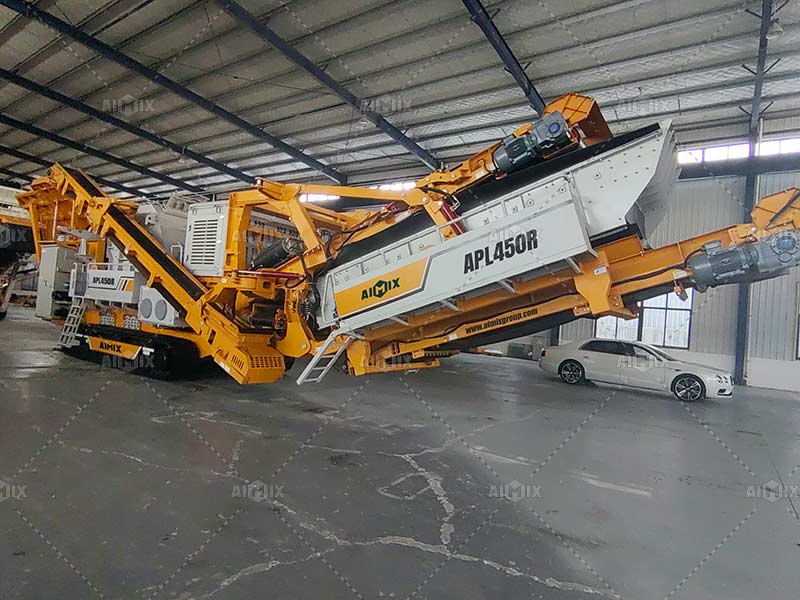

crawler impact crusher machine

Get A Quote

Whether requiring fast relocation on paved sites or rugged mobility on uneven ground, the above two types of mobile crushers impact typeoffer the flexibility to optimize on-site crushing, recycling, and material processing with ease. If you want to invest in, welcome to conslut us for details.

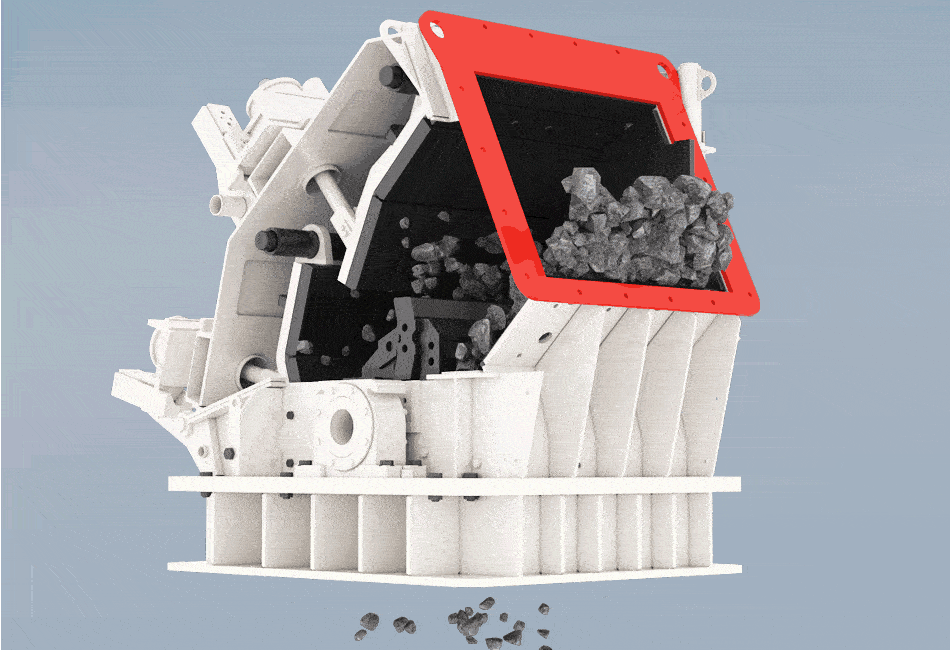

How An Impact Crusher Works?

The impact crusher for sale works by using forceful, high-speed impact to crush materials, ideal for creating uniformly shaped, high-quality aggregate. Here’s a the impact crusher working principle:

  1. Motor Drive: The process begins when the motor drives the rotor at high speed.
  2. Material Entry: Raw material enters the action area of the plate hammer on the rotor.
  3. Initial Collision: The material collides with the plate hammer, which breaks it apart.
  4. Secondary Impact: The broken material is then thrown against the impact crusher’s device, where it is broken again.
  5. Further Crushing: The material bounces off the lining plate of the crusher and returns to the action area of the blow impact hammer for additional crushing.
  6. Repetition of Process: This crushing process is repeated multiple times. The material passes through the first, second, and third counterattack chambers, progressively reducing in size.
  7. Particle Size Adjustment: The gap between the impact frame and the rotor can be adjusted to change the particle size and shape of the discharged material.
  8. Discharge: Once the material reaches the required particle size, it is discharged from the discharge port.

Working principle of impact crusher

Impact Crusher Parts

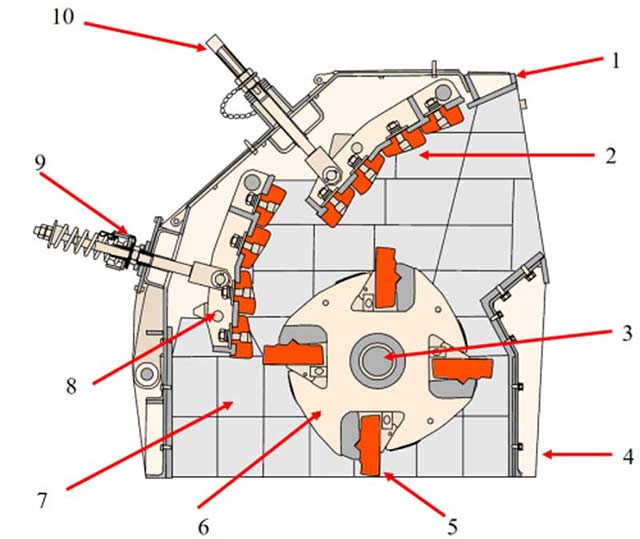

The crusher machine impact type consists of several parts, here is an impact crusher diagram showing the main components for refernce:

Impact-Crusher-Parts-AIMIX

  1. Front Frame
  2. Front Impact Bar
  3. Rotor Bearing
  4. Lower Frame
  5. Blow Bars
  6. Rotor
  7. Side Liners
  8. Rear Impact Bars
  9. Rear Breaker Plate Adjuster
  10. Front Breaker Plate Adjuster

Among the above componets, some of them are impact crusher spares. Here I introduce you some impact crusher spare parts in details. Regular impact crusher maintenance, especially for the spare parts, can prolong its life span.

Rotor

The rotor is the heart of the vertical impact crusher. It consists of a high-speed rotating shaft that is equipped with blow bars. The small impact crusher rotor’s rotation creates a centrifugal force that accelerates the material toward the impact plates.

Impact Plates

Positioned at the base of the crushing chamber, impact plates receive the material propelled by the blow bars. They further crush the material through impact, shaping it to the desired size.

Blow Bars

These are heavy metal bars attached to the rotor. They strike the incoming material, causing it to break apart. Blow bars can be made from various materials, including high chromium steel, to enhance wear resistance.

Side Liners

The side liners of small impact crusher for sale are protective plates located on the sides of the crushing chamber. They help protect the interior of the reversible impactor from wear and tear caused by the material being processed.

Comparison Between Impact Crushers With Other Types Of Crushers

When it comes to the crushing machinery, various types of crushers serve distinct purposes based on the material being processed and the desired output. In the market, there are common types of crusher machines for sale, like compact impact crusher, cone crusher, and jaw crushser. What does the impact crushers differ from others? Below I have done comparasion for reference.

Impact Crusher VS. Jaw Crusher

What is the difference between a jaw crusher and an impact crusher? Here are the key differences:

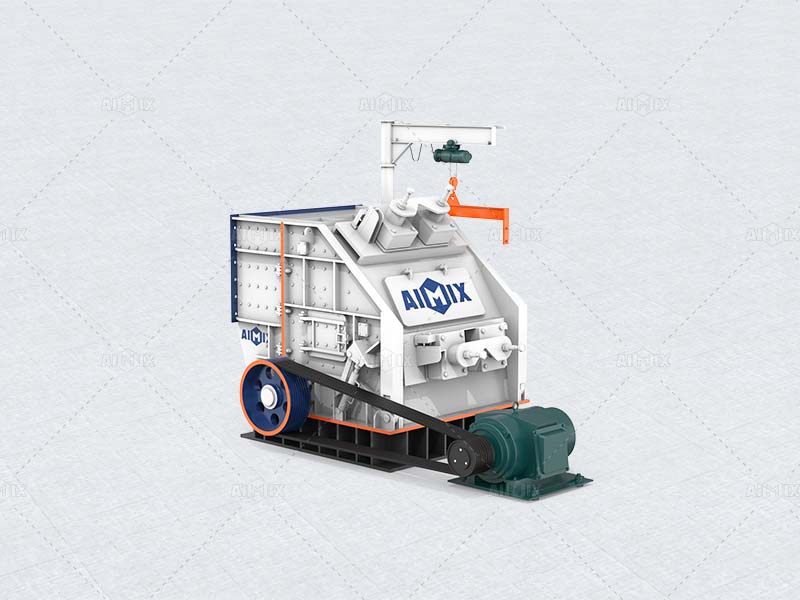

APF1214 Impact Crusher
Impact Crusher

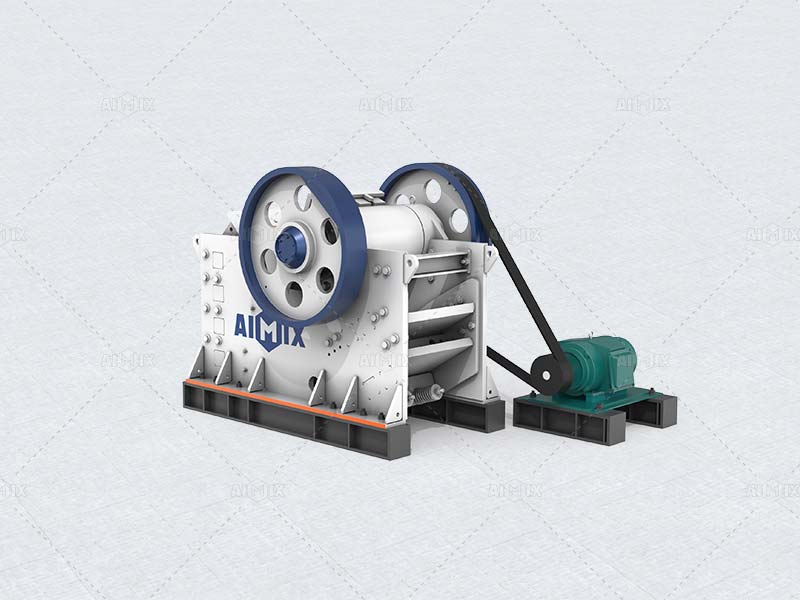

Jaw Crusher
Jaw Crusher

Crushing Mechanism

The reversible impact crusher uses impact force to crush materials. But the jaw crusher utilizes a compressive force to break materials.

Processing Raw Materials

The closed circuit impact crusher is suitable for softer materials and materials that are not very abrasive, like limestone and construction waste. It is typically used for secondary or tertiary crushing.
However, the jaw type crusher is more appropriate for hard and abrasive materials such as granite, basalt, and quartz. It is effective for primary crushing.

Output Shape

The double rotor impact Crusher can produce a more cubical product, which is often preferred for concrete and asphalt recycling. And the jaw crusher equipment can typically handle a wide range of rock sizes, which is ideal for many applications.

Impact Crusher VS. Cone Crusher

Impact crusher for sale and cone crusher are both the two crusher machines of the sand and stone production line. There is no good or bad problem. They are different in terms of crushing mode and applicable materials.

Here are the specific differences:

APF1214 Impact Crusher
Impact Crusher

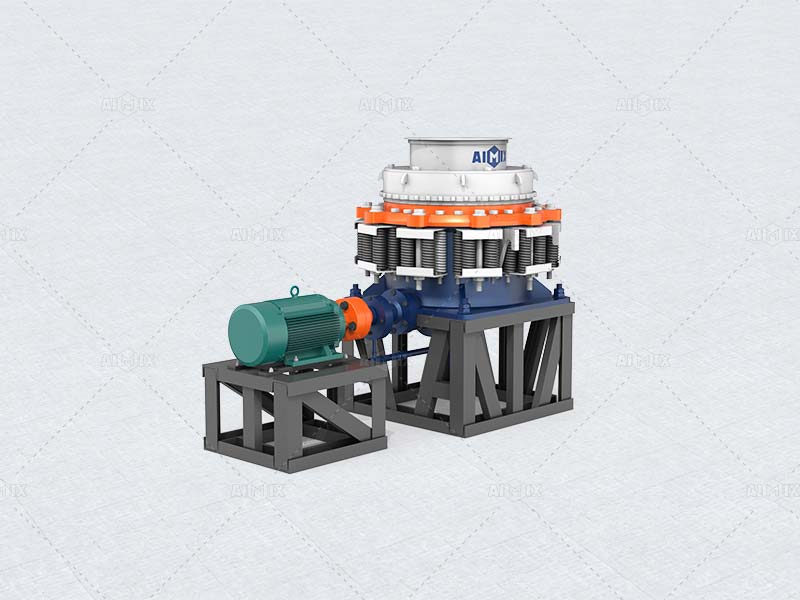

cone crushers
Cone Crusher

Different Principles Of Crushing Methods

Impact crushers use impact energy to crush the material, the material between the hammer and the impact plate is repeatedly broken, cone crusher adopts the principle of laminated crushing, rolling mortar wall constantly to the broken wall movement, squeezing sandwiched between the material, so that it is crushed.

Various Scope Of Application

The crushing principle of the two machines is not the same for the various hardness of raw materials.
Generally speaking, a cone crusher is suitable for crushing granite, basalt, pebbles, iron ore, gold ore, and other high hardness rock and metal ore, and an impact crusher is suitable for crushing limestone, calcite, and other low hardness stone. Click this page about granite crushers, you can also choose a crusher from the aspect of applicable raw materials.

Different Handling Capacity

Compared with horizontal impact crusher for sale, cone crusher has larger processing capacity, higher crushing efficiency, and is more suitable for large-scale production line operations.

Input Costs Are Different

Early investment of the cone crusher is relatively large, but the late impact crusher cost for maintenance is high.
If it is broken hard rock, in the long run, the cone crusher is more cost-effective than the impact crusher.

Choose Impact Crusher Manufacturer In China

China has a lot of impact crusher manufacturers, but how to make a choice? We often tell customers several steps to choose a reliable manufacturer, such as the scale of the manufacturer of impact crusher china, the export cases of the impact crusher supplier, the after-sales service, the cost performance, and pay a visit, etc., but in fact, the most important point is to see the possibility of the manufacturer to provide you.

For example, at AIMIX GROUP, we can not only provide you with high-quality impact crusher for sale but also provide you with a variety of concrete equipment. If you have enough capital, you can invest in a whole crushing production line to provide local customers with one-stop services in the construction industry. For example, recently we have developed a crushing + production of concrete program, with such a production line, you can not only sell all kinds of sand and stone materials but also can sell concrete, to achieve the high ROI. Contact us for impact crusher price list and estimate the ROI of the whole project.

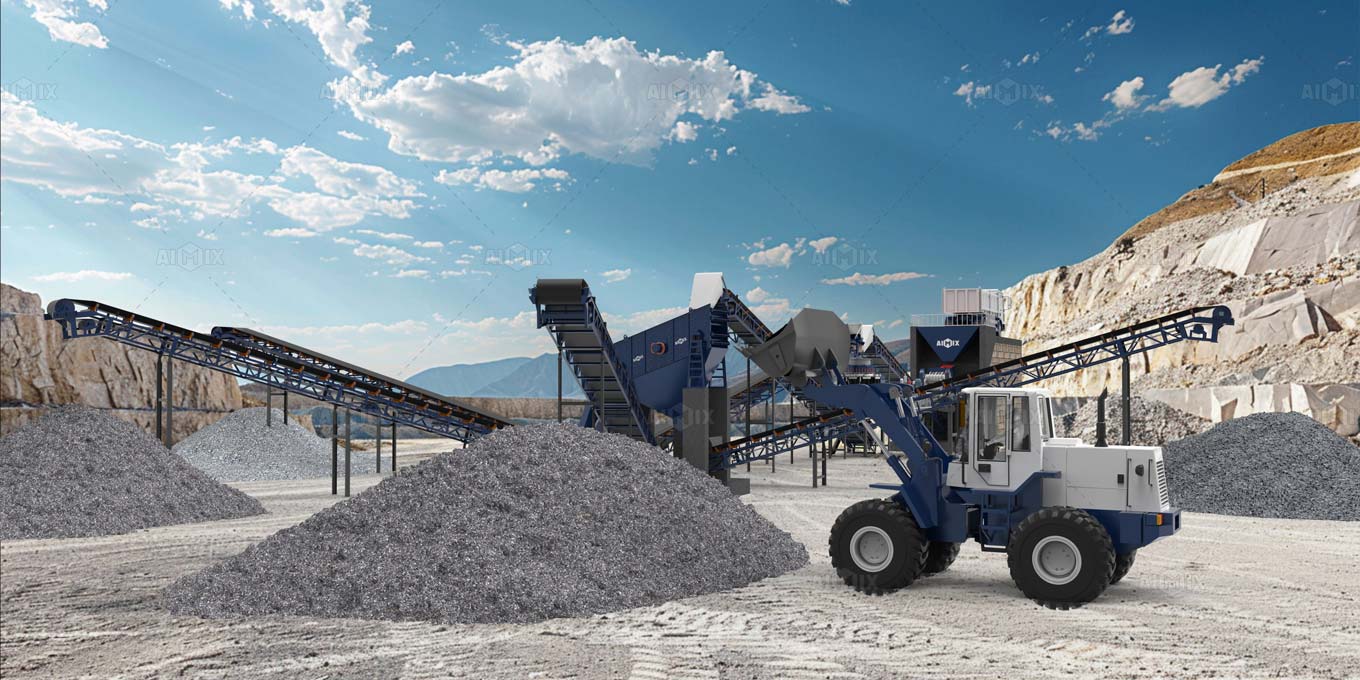

crushing line

Therefore, when you go on the offensive to break the manufacturer, you can’t just look at the strength in the field of crushing equipment manufacturers, the more to prepare for future career, AIMIX GROUP salesman and engineers can plan out of many kinds of investment programs for you, as long as you tell us your idea, we will according to your idea for you to provide a variety of investment plan for you to choose, earn more revenue for you. Contact us right now through leaving requirements in the inquiry form, email, or WhatsApp.
